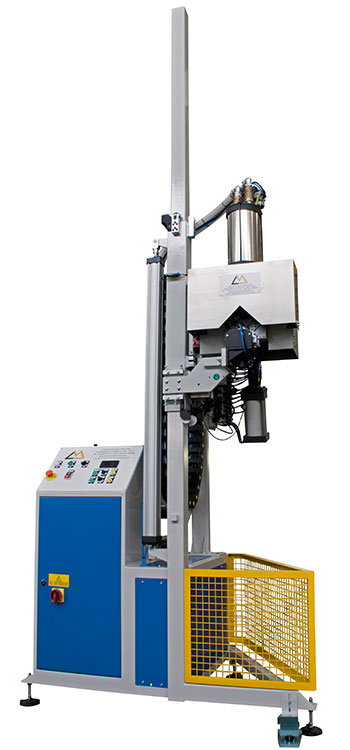

AUTOMATIC DESICCANT FILLER CSA2
The automatic desiccant filler machine performs the filling of spacer frames with desiccant. The machine is suitable for the filling of desiccant in aluminium spacers, stainless steel spacers and Warm Edge spacers (Chromatech Ultra, Thermix TX.N plus, TGI spacer M, Thermobar, Multitech, Swisspacer Advance, Swisspacer Ultimate)
The machine process is fully automatic:
– drilling in the back of the spacer (using drill bits suitable also for steel)
– filling of desiccant, made by pressure, which assures perfect filling and high speed.
– closing of the loading holes with butyl
To work big size frames the working head will raise automatically till it reaches the desired position. (max. size ≈ 2500 x 3500 mm)
The security system includes a desiccant presence control and if desiccant will finish, the machinery will report it and will stop the work cycle to allow the worker to load new material. After the new material will be load the machinery will normally restart work. It is the same for the butyl to close the holes.
The desiccant filler is equipped with a hopper for the containing of the desiccant (around 40 kg) insert in the machine base. A system to load desiccant from 200 Kg. drum is available as optional.
Workable spacers: Aluminium / Stainless steel / Warm Edge 8-24mm, H 6,5 – 8mm.
Machine dimension: L 1.550mm, W 1.150mm, H max 3.060mm.
